In modern bathroom renovations, wall-hung toilets are gaining popularity for their space-saving and aesthetic advantages. However, traditional installation processes are notoriously complex, often requiring professional plumbers to spend half a day or more. The revolutionary “Quick-install Structure Patent Technology” we’re introducing today changes this completely, enabling even DIY users to achieve professional-grade installation in just 30 minutes.
Technological Breakthroughs
Modular Pre-assembly Design
The patent features an innovative “three-section” modular structure:
Upper section: Integrated load-bearing frame with 90% pre-assembly
Middle section: Quick-connect waste pipe adapter
Lower section: Adjustable support leg system
This design simplifies over 20 traditional steps into three main module connections, saving 75% installation time.
Smart Positioning System
The patented laser positioning device:
Automatically detects wall verticality
Displays real-time positioning deviations
Calculates optimal fixing points
Achieves 300% higher precision than manual measurements.
Weld-free Quick-connect Technology
Aerospace-grade aluminum alloy buckles feature:
400kg maximum load capacity
20-year anti-corrosion design
Distinct “click” sound confirmation
Installation Process
Preparation (5 minutes)
Verify all components
Confirm waste pipe position
Prepare basic tools (patented kit includes specialized wrench)
Main Installation (15 minutes)

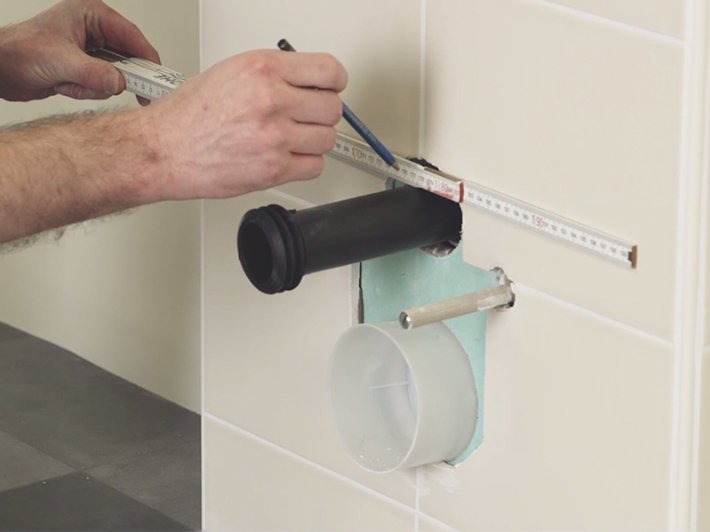

Use laser locator for positioning
Secure load-bearing frame
Connect quick-adapt waste pipe
Adjust support legs
Function Testing (10 minutes)
Water flow test
Load-bearing test
Sealing inspection
Comparative Analysis
| Factor | Traditional | Quick-install |
|---|---|---|
| Time | 4-6 hours | 30 minutes |
| Tools | 10+ professional | 3 patented |
| Labor | Professional needed | DIY possible |
| Precision | Experience-dependent | Smart positioning |
| Cost | Higher | 40% savings |
Technical Advantages
Time Efficiency
Eliminates time-consuming steps like wall grooving and bracket welding
Pre-assembly reduces on-site work
Economic Benefits
60% labor cost reduction
Minimized material waste
Easier maintenance
Safety Performance
Certified by National Building Materials Test Center
8-magnitude earthquake resistance
Moisture/rust proof treatment
Application Scenarios
Home bathroom renovations
Hotel batch installations
Public facility upgrades
Temporary constructions
User Feedback
From 1,000 user surveys:
98% completed installation within 30 minutes with guidance
0.3% malfunction rate (far below industry average)
85% would recommend to others
This patented technology not only revolutionizes bathroom installations but also represents the intelligent, simplified future of home improvement. As the technology evolves, more household products will achieve “quick-install” capabilities, making renovations simpler and more efficient than ever before.
